Cloud UX | Octopus | Administrator Guide

This guide provides instructions for administrators to configure and manage the Cloud UX | Octopus application.

Table of Contents

Introduction

This is the essential guide to Octopus Administration, covering all the major tasks that administrators need to complete. Configuration of the Octopus app in Cloud UX is very straightforward and does not require regular maintenance.

For Octopus server administration please refer to official Octopus documentation.

All important settings can be found in the Cloud UX Administration interface and are accessible only for Cloud UX administrators.

Administration Interface

Here is the list and description of all available settings for the Octopus app. After changing the settings the administrator has to manually save the changes with the Save button at the bottom of the page.

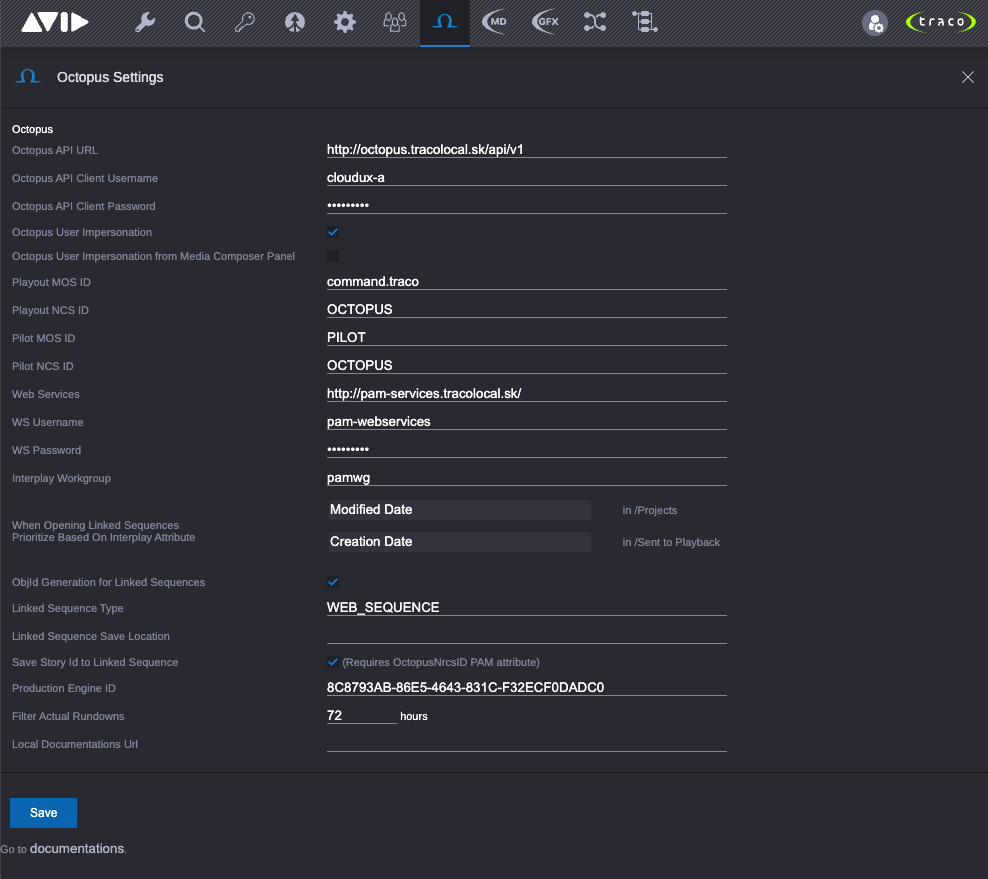

Octopus Administration App

  • Octopus API URL: URL of the Octopus REST API (http://<octopus_api_server_fqdn_or_ip>/api/v1). Octopus REST API license required!
  • Octopus API Client Username: Username of the Octopus user, who will communicate with the Octopus server.
    User of type "API Client" is required. Also remember to add this user to right groups according to permissions required for operations, e.g if you want to delete stories, it needs to have appropriate rights for that.
  • Octopus API Client Password: Password for the Octopus API Client Username.
  • Octopus User Impersonation: If disabled, then every user of the Cloud UX | Octopus app will have the same Octopus roles and privileges as the Octopus API Client Username defined above. If enabled, then user roles and privileges of the Cloud UX | Octopus app will be determined based on the signed in Cloud UX username which has to match with the username in Octopus. We recommend importing users to Cloud UX and to Octopus from the same Active Directory, so the usernames will be the same in both systems.
    If the impersonation is active but the username is not present in both Cloud UX and Octopus systems or the user was not granted Impersonator role in Octopus, then the Cloud UX user will not see any content in the Cloud UX | Octopus app.

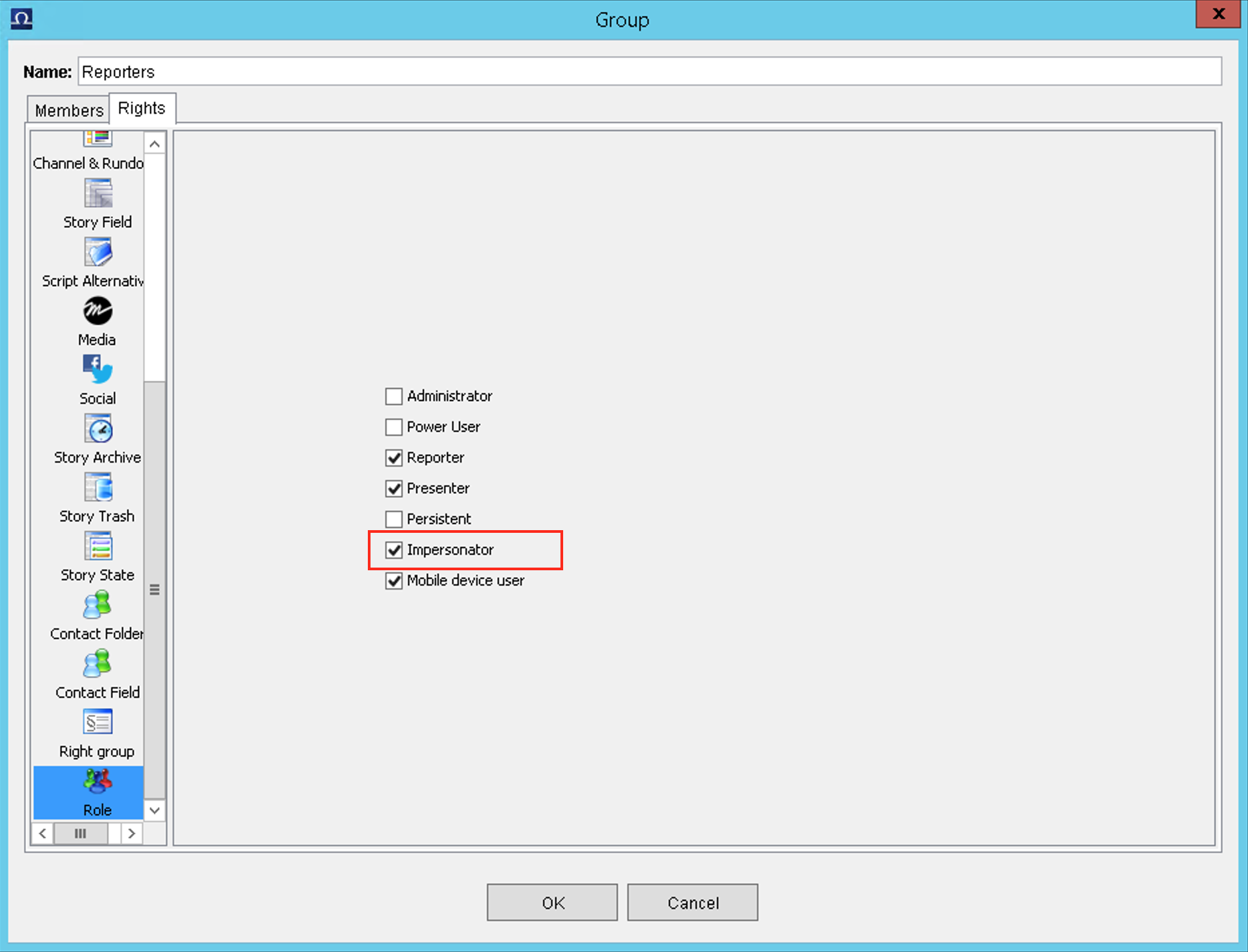

    If the Impersonator role for Octopus groups is not available or missing, please contact your Octopus representatives. Impersonator Role
  • Octopus User Impersonation from Media Composer Panel: This will determine the user impersonation behaviour of the Cloud UX | Octopus app when running inside Media Composer Panel, thus the impersonation should be disabled or enabled in Media Composer panel.
    This setting is applied for other companion windows of MediaCentral | Cloud UX integrations, such as Adobe Premiere Pro.
  • Playout MOS ID: Video Playout MOS ID where MOS placeholders will be created (for example iNews Command).
  • Playout NCS ID: NRCS ID of Octopus for creating Video Playout MOS elements.
  • Viz Pilot MOS ID: (Optionally) Viz Content Pilot MOS ID. For more details see Viz Pilot MOS Gateway documentation.
  • Web Services: URL to Interplay (MediaCentral PAM) Web Services.
    Used for searching the PAM database for clips. If empty, then story elements' clips will be always created in PAM when trying to open a clip from the Cloud UX | Octopus app, even if the clip ID is already present in PAM.
  • Web Services Username: Username for accessing Interplay Web Services.
  • Web Services Password: Password for accessing Interplay Web Services.
  • Web Services Workgroup: Interplay (Media Central PAM) workgroup name.
  • When Opening Linked Sequences Prioritize Based On Interplay Attribute:
    • Administrators can define which Interplay Attribute will be used for comparison when opening Linked Sequences.
    • Separate setting for searching in /Projects and /Sent to Playback.
  • Linked Sequence Type: Type of the created Linked Sequences. Available values: WEB_SEQUENCE or ADVANCE or BASIC.
    • WEB_SEQUENCE = Sequence
    • ADVANCE = News Sequence (default)
    • BASIC = Shotlist
  • Linked Sequence Save Location: Default path in Interplay PAM for new sequence created in Cloud UX | Octopus app. Default is /Projects/OCTOPUSsequences.
    Subfolders in the defined location will be created automatically based on the creation date of the sequence.
  • Linked Sequence Name: Pattern used for naming the created Linked Sequences. Available values:
    • Object Name (default)
    • Object ID
    • Story Name
  • Save Story Id to Linked Sequence: If enabled, the Octopus story id will be saved into a PAM attribute OctopusNrcsID when creating Linked Sequences (required for Burn GFX workflows). ⚠️ Important: PAM attribute OctopusNrcsID must be manually created in Interplay Administrator.
  • Auto-load Linked Sequence In Embedded Mode: When enabled, automatically loads the linked sequence when running in embedded mode (such as Media Composer panel).
  • Allow Placeholder Creation: Enables creating unique Object IDs for empty Story Elements.
    • Prefix: Custom prefix for placeholder IDs (default: cux-)
    • Default duration: Default duration in seconds for placeholders (default: 10)
  • Disable Story States Editing: When enabled, prevents users from editing story states in the application.
